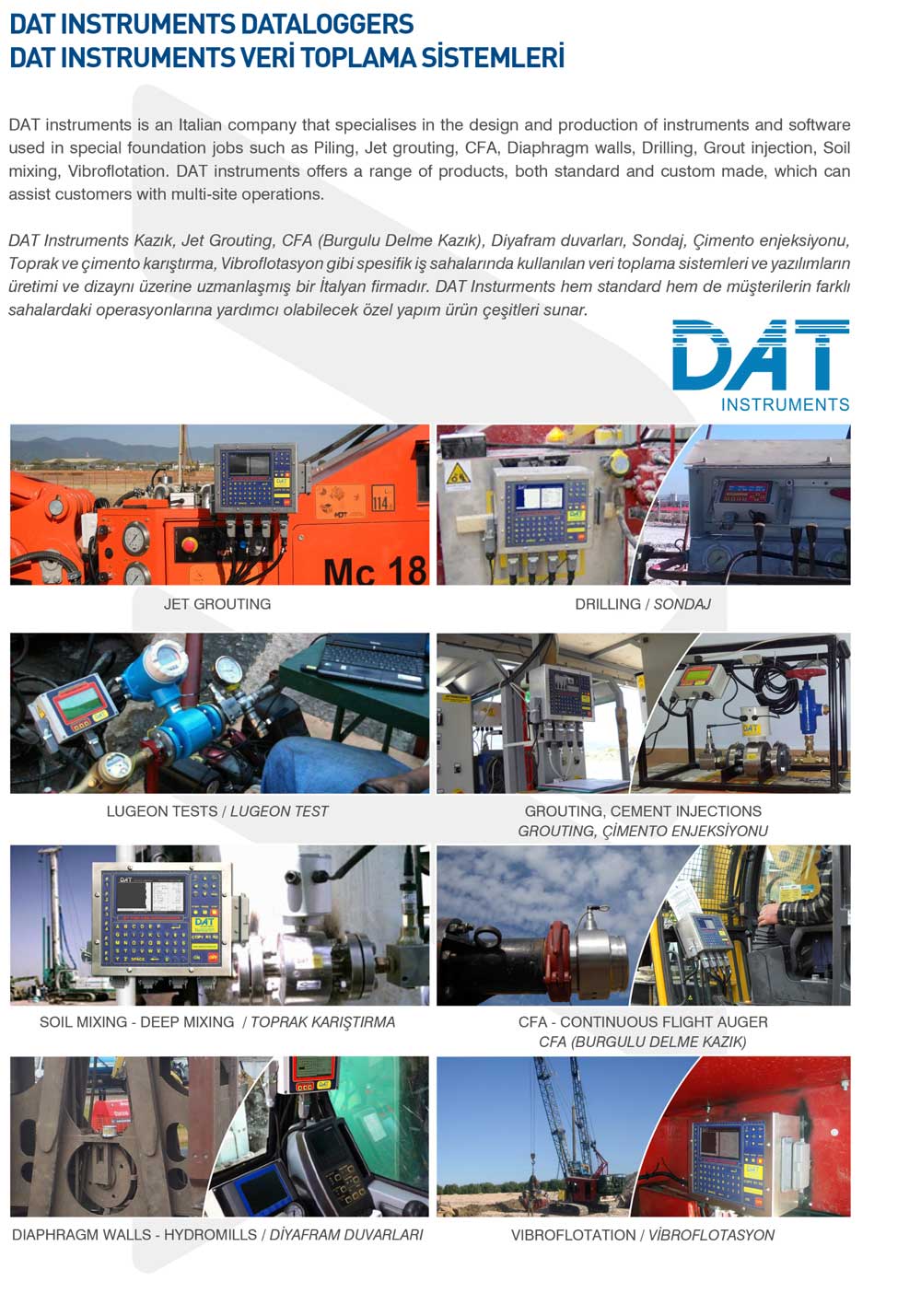

DAT instruments is an Italian company that specializes in the design and production of instruments and software used in special foundation jobs such as;
• Piling,
• Jet Grouting,
• CFA, (Auger)
• Diaphragm walls,
• Drilling,
• Grout injection,
• Soil mixing,
• Vibroflotation
DAT instruments offers a range of products, both standard and custom made, which can assist customers with multi-site operations.
Founded in 2001 by Amedeo Valoroso, DAT instruments is a dynamic and fast growing company that serves over twenty countries on five continents and now its products are available in Turkish market with Barkom Group reliability
DATALOGGER AND SOFTWARE FOR DRILLING & INJECTION
JET SDP / IB
Display, directly on datalogger LCD, of instantaneous recorded parameters, in terms of depth.
Data downloading to PC in order to process, file, export and print exhaustive reports.
Measuring and recording of the following selectable parameters :
• drill depth (JET DEPTH)
• feed force (JET FORCE)
• translation rod speed (JET DEPTH)
• boring rod rotation torque (JET TORQ)
• boring rod rotation speed (JET ROT)
• water pressure (JET PRESS)
• date and time of drilling and duration
• soilrelative energy
JET 4000 AME / J - MD
Display, directly on datalogger LCD, of instantaneous and average recorded parameters, of graphics in terms of depth and of summarizing data.
Automatic start of the equipment when starting recording, automatic stop when reaching required depth.
Automatic recognition of rod changing operation.
Automatic recording suspension.
Data downloading to PC in order to process, file, export and print exhaustive reports.
Measuring and recording of the following selectable parameters :
• drill depth (JET DEPTH)
• feed force (JET FORCE)
• translation rod speed (JET DEPTH)
• boring rod rotation torque (JET TORQ)
• boring rod rotation speed (JET ROT)
• X and Y mast inclination (JET INCL XY)
• water pressure (JET PRESS)
• water flow and volume (JET FLOW)
• date and time of drilling and duration
• soil relative energy
• input for GPS receiver
JET SDP / IB & JET 4000 AME / J - MD
http://www.datinstruments.com/en/drilling-mwd/
JET DSP 100 / IR (1 PUMP)
• Measuring and recording of pressure, flow and volume parameters of cement grout.
• Display with very big digits, directly on datalogger LCD, of instant aneous pressure, flow rate and volume values.
• Data downloading to PC, in order to create and print summarizing reports, to obtain easy and quick information files concerning injections carried out and to export data to Microsoft Excel.
JET 4000 AME / I (from 1 to 4 PUMPS)
• Measuring and recording of pressure, flow and volume parameters of cement grout.
• Display, directly on datalogger LCD, of instantaneous pressure, flow rate and volume values.
• Display in real time of injection graphics and of summarizing reports.
• Automatic stop of the injector when maximum established pressure, maximum volume of the grout are reached, via GIN method or when achieving maximum duration.
• Automatic restart of pumping if, after being stopped, pressure goes under pre-established value.
• Start of the injectors directly from JET 4000 AME / I datalogger keyboard.
• Sending from a PC of a project with different kind of pile and valve in order to avoid set up in field.
• Data downloading to PC, in order to create and print summarizing reports, to obtain easy and quick information files concerning injections carried out and to export data to Microsoft Excel.
• Possibility to print data immediately, via JET PRINT60 printer which can be installed into the datalogger.
JET DSP 100 / IR & JET 4000 AME / I
http://www.datinstruments.com/en/grouting-gin/
JET S 104 DATA PROCESSING SOFTWARE & DATA TRANSFER SYSTEMS TO PC
Recorded data by JET 4000 AME are stored on three large internal memories. Recorded data can also be transferred to a Windows PC which has JET S 104 software installed, via: JET C USB cable, USB pen-drives or JET RACK USB. Recorded data by JET DSP 100 can be transferred via USB cable or USB pen-drives. The software let you organize and elaborate data, draw graphics and tables and print them. It is also available a function to export data to Microsoft Excel.
