WIRELINE CORING SYSTEM

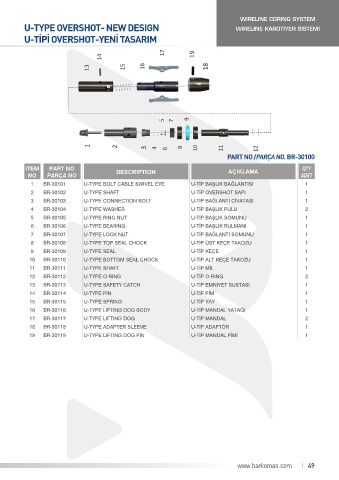

U-TYPE OVERSHOT- NEW DESIGN WIRELINE KAROTİYER SİSTEMİ
U-TİPİ OVERSHOT-YENİ TASARIM

14 17 19

13 15 16 18
U TİPİ SULU OVERSHOT

5 7 9

1 2 3 4 6 8 10 11 12
PART NO /PARÇA NO. BR-30100

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-30101 U-TYPE BOLT CABLE SWIVEL EYE U-TİP BAŞLIK BAĞLANTISI 1
2 BR-30102 U-TYPE SHAFT U-TİP OVERSHOT SAPI 1
3 BR-30103 U-TYPE CONNECTION BOLT U-TİP BAĞLANTI CİVATASI 1
4 BR-30104 U-TYPE WASHER U-TİP BAŞLIK PULU 2
5 BR-30105 U-TYPE RING NUT U-TİP BAŞLIK SOMUNU 1
6 BR-30106 U-TYPE BEARING U-TİP BAŞLIK RULMANI 1
7 BR-30107 U-TYPE LOCK NUT U-TİP BAĞLANTI SOMUNU 1
8 BR-30108 U-TYPE TOP SEAL CHOCK U-TİP ÜST KEÇE TAKOZU 1
9 BR-30109 U-TYPE SEAL U-TİP KEÇE 1
10 BR-30110 U-TYPE BOTTOM SEAL CHOCK U-TİP ALT KEÇE TAKOZU 1
11 BR-30111 U-TYPE SHAFT U-TİP MİL 1
12 BR-30112 U-TYPE O-RING U-TİP O-RING 2
13 BR-30113 U-TYPE SAFETY CATCH U-TİP EMNİYET SUSTASI 1
14 BR-30114 U-TYPE PIN U-TİP PİM 1
15 BR-30115 U-TYPE SPRING U-TİP YAY 1
16 BR-30116 U-TYPE LIFTING DOG BODY U-TİP MANDAL YATAĞI 1
17 BR-30117 U-TYPE LIFTING DOG U-TİP MANDAL 2
18 BR-30118 U-TYPE ADAPTER SLEEVE U-TİP ADAPTÖR 1
19 BR-30119 U-TYPE LIFTING DOG PIN U-TİP MANDAL PİMİ 1

www.barkomas.com 49
