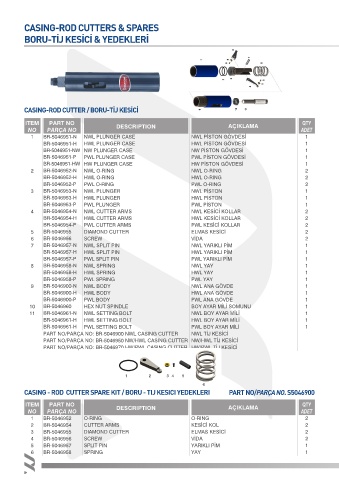

Page 94 - Barkom 2019 Katalog

CASING-ROD CUTTERS & SPARES
BORU-TİJ KESİCİ & YEDEKLERİ

CASING-ROD CUTTER / BORU-TİJ KESİCİ

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-5046951-N NWL PLUNGER CASE NWL PİSTON GÖVDESİ 1
BR-5046951-H HWL PLUNGER CASE HWL PİSTON GÖVDESİ 1
BR-5046951-NW NW PLUNGER CASE NW PİSTON GÖVDESİ 1
BR-5046951-P PWL PLUNGER CASE PWL PİSTON GÖVDESİ 1
BR-5046951-HW HW PLUNGER CASE HW PİSTON GÖVDESİ 1
2 BR-5046952-N NWL O-RING NWL O-RING 2
BR-5046952-H HWL O-RING HWL O-RING 2
BR-5046952-P PWL O-RING PWL O-RING 2
3 BR-5046953-N NWL PLUNGER NWL PİSTON 1
BR-5046953-H HWL PLUNGER HWL PİSTON 1
BR-5046953-P PWL PLUNGER PWL PİSTON 1
4 BR-5046954-N NWL CUTTER ARMS NWL KESİCİ KOLLAR 2
BR-5046954-H HWL CUTTER ARMS HWL KESİCİ KOLLAR 2
BR-5046954-P PWL CUTTER ARMS PWL KESİCİ KOLLAR 2
5 BR-5046955 DIAMOND CUTTER ELMAS KESİCİ 2
6 BR-5046956 SCREW VİDA 2
7 BR-5046957-N NWL SPLIT PIN NWL YARIKLI PİM 1
BR-5046957-H HWL SPLIT PIN HWL YARIKLI PİM 1
BR-5046957-P PWL SPLIT PIN PWL YARIKLI PİM 1
8 BR-5046958-N NWL SPRING NWL YAY 1
BR-5046958-H HWL SPRING HWL YAY 1
BR-5046958-P PWL SPRING PWL YAY 1
9 BR-5046900-N NWL BODY NWL ANA GÖVDE 1
BR-5046900-H HWL BODY HWL ANA GÖVDE 1
BR-5046900-P PWL BODY PWL ANA GÖVDE 1
10 BR-5046960 HEX NUT SPINDLE BOY AYAR MİLİ SOMUNU 1
11 BR-5046961-N NWL SETTING BOLT NWL BOY AYAR MİLİ 1
BR-5046961-H HWL SETTING BOLT HWL BOY AYAR MİLİ 1
BR-5046961-H PWL SETTING BOLT PWL BOY AYAR MİLİ 1
PART NO/PARÇA NO: BR-5046900 NWL CASING CUTTER NWL TİJ KESİCİ
PART NO/PARÇA NO: BR-5046950 NW/HWL CASING CUTTER NW/HWL TİJ KESİCİ
PART NO/PARÇA NO: BR-5046970 HW/PWL CASING CUTTER HW/PWL TİJ KESİCİ

1 2 3 4 5
6
CASING - ROD CUTTER SPARE KIT / BORU - TİJ KESİCİ YEDEKLERİ PART NO/PARÇA NO. S5046900

ITEM PART NO AÇIKLAMA QTY
NO PARÇA NO DESCRIPTION ADET
1 BR-5046952 O-RING O-RING 2
2 BR-5046954 CUTTER ARMS KESİCİ KOL 2
3 BR-5046955 DIAMOND CUTTER ELMAS KESİCİ 2
4 BR-5046956 SCREW VİDA 2
5 BR-5046957 SPLIT PIN YARIKLI PİM 1
6 BR-5046958 SPRING YAY 1
