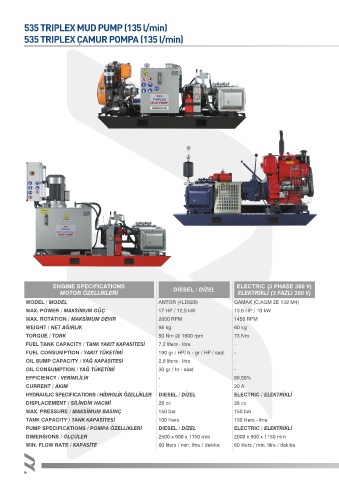

535 TRIPLEX MUD PUMP (135 l/min)
535 TRIPLEX ÇAMUR POMPA (135 l/min)

ENGINE SPECIFICATIONS DIESEL / DİZEL ELECTRIC (3 PHASE 380 V)
MOTOR ÖZELLİKLERİ ELEKTRİKLİ (3 FAZLI 380 V)

MODEL / MODEL ANTOR (4LD820) GAMAK (C.AGM 2E 132 M4)
MAX. POWER / MAKSİMUM GÜÇ 17 HP / 12,5 kW 13,6 HP / 10 kW
MAX. ROTATION / MAKSİMUM DEVİR 2600 RPM 1450 RPM
WEIGHT / NET AĞIRLIK 98 kg 60 kg
TORQUE / TORK 50 Nm @ 1600 rpm 73 Nm
FUEL TANK CAPACITY / TANK YAKIT KAPASİTESİ 7,2 liters - litre -
FUEL CONSUMPTION / YAKIT TÜKETİMİ 190 gr / HP/ h - gr / HP / saat -
OIL SUMP CAPACITY / YAĞ KAPASİTESİ 2,6 liters - litre -
OIL CONSUMPTION / YAĞ TÜKETİMİ 30 gr / hr - saat -
EFFICIENCY / VERİMLİLİK - 89,50%
CURRENT / AKIM - 20 A
HYDRAULIC SPECIFICATIONS / HİDROLİK ÖZELLİKLER DIESEL / DİZEL ELECTRIC / ELEKTRİKLİ
DISPLACEMENT / SİLİNDİR HACMİ 28 cc 28 cc
MAX. PRESSURE / MAKSİMUM BASINÇ 150 bar 150 bar
TANK CAPACITY / TANK KAPASİTESİ 100 liters 130 liters - litre
PUMP SPECIFICATIONS / POMPA ÖZELLİKLERİ DIESEL / DİZEL ELECTRIC / ELEKTRİKLİ
DIMENSIONS / ÖLÇÜLER 2500 x 900 x 1150 mm 2000 x 900 x 1150 mm
MIN. FLOW RATE / KAPASİTE 60 liters / min, litre / dakika 60 liters / min, litre / dakika
