DRILLING MUD PRODUCTS

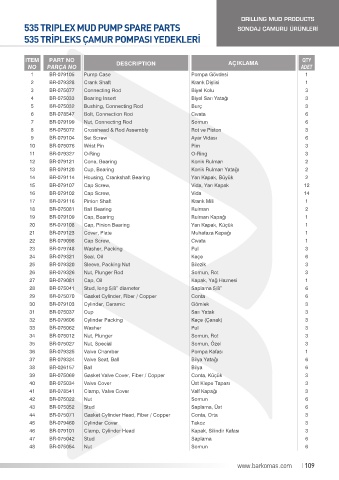

535 TRIPLEX MUD PUMP SPARE PARTS SONDAJ ÇAMURU ÜRÜNLERİ
535 TRİPLEKS ÇAMUR POMPASI YEDEKLERİ
ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-079105 Pump Case Pompa Gövdesi 1
2 BR-079328 Crank Shaft Krank Dişlisi 1
3 BR-075077 Connecting Rod Biyel Kolu 3
4 BR-075033 Bearing Insert Biyel Sarı Yatağı 3
5 BR-075032 Bushing, Connecting Rod Burç 3
6 BR-078547 Bolt, Connection Rod Cıvata 6
7 BR-079199 Nut, Connecting Rod Somun 6
8 BR-075072 Crosshead & Rod Assembly Rot ve Piston 3
9 BR-079104 Set Screw Ayar Vidası 6
10 BR-075076 Wrist Pin Pim 3
11 BR-079327 O-Ring O-Ring 3
12 BR-079121 Cone, Bearing Konik Rulman 2
13 BR-079120 Cup, Bearing Konik Rulman Yatağı 2
14 BR-079114 Housing, Crankshaft Bearing Yan Kapak, Büyük 2
15 BR-079107 Cap Screw, Vida, Yan Kapak 12
16 BR-079102 Cap Screw, Vida 14
17 BR-079116 Pinion Shaft Krank Mili 1
18 BR-075081 Ball Bearing Rulman 2
19 BR-079109 Cap, Bearing Rulman Kapağı 1
20 BR-079108 Cap, Pinion Bearing Yan Kapak, Küçük 1
21 BR-079123 Cover, Plate Muhafaza Kapağı 1
22 BR-079098 Cap Screw, Cıvata 1
23 BR-079748 Washer, Packing Pul 3
24 BR-079321 Seal, Oil Keçe 6
25 BR-079320 Sleeve, Packing Nut Bilezik 3
26 BR-079326 Nut, Plunger Rod Somun, Rot 3
27 BR-079081 Cap, Oil Kapak, Yağ Haznesi 1
28 BR-075041 Stud, long 5/8” diameter Saplama 5/8” 6
29 BR-075070 Gasket Cylinder, Fiber / Copper Conta 6
30 BR-079103 Cylinder, Ceramic Gömlek 3
31 BR-075037 Cup Sarı Yatak 3
32 BR-079606 Cylinder Packing Keçe (Çanak) 3
33 BR-075062 Washer Pul 3
34 BR-075012 Nut, Plunger Somun, Rot 3
35 BR-075027 Nut, Special Somun, Özel 3
36 BR-079325 Valve Chamber Pompa Kafası 1
37 BR-079324 Valve Seat, Ball Bilya Yatağı 6
38 BR-026157 Ball Bilya 6
39 BR-075069 Gasket Valve Cover, Fiber / Copper Conta, Küçük 3
40 BR-075034 Valve Cover Üst Klepe Tapası 3
41 BR-078541 Clamp, Valve Cover Valf Kapağı 3
42 BR-075022 Nut Somun 6
43 BR-075052 Stud Saplama, Üst 6
44 BR-075071 Gasket Cylinder Head, Fiber / Copper Conta, Orta 3
45 BR-079460 Cylinder Cover Takoz 3
46 BR-079101 Clamp, Cylinder Head Kapak, Silindir Kafası 3
47 BR-075042 Stud Saplama 6
48 BR-075054 Nut Somun 6
www.barkomas.com 109
