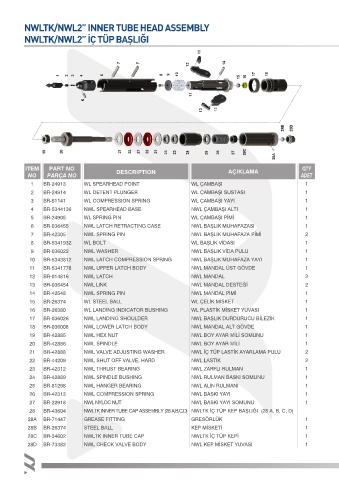

NWLTK/NWL2” INNER TUBE HEAD ASSEMBLY
NWLTK/NWL2” İÇ TÜP BAŞLIĞI

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-24913 WL SPEARHEAD POINT WL ÇAMBAŞI 1
2 BR-24914 WL DETENT PLUNGER WL ÇAMBAŞI SUSTASI 1
3 BR-51141 WL COMPRESSION SPRING WL ÇAMBAŞI YAYI 1
4 BR-5344136 NWL SPEARHEAD BASE NWL ÇAMBAŞI ALTI 1
5 BR-24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 1
6 BR-036455 NWL LATCH RETRACTING CASE NWL BAŞLIK MUHAFAZASI 1
7 BR-42305 NWL SPRING PIN NWL BAŞLIK MUHAFAZA PİMİ 2
8 BR-5341932 WL BOLT WL BAŞLIK VİDASI 1
9 BR-036022 NWL WASHER NWL BAŞLIK VİDA PULU 1
10 BR-5343812 NWL LATCH COMPRESSION SPRING NWL BAŞLIK MUHAFAZA YAYI 1
11 BR-5341778 NWL UPPER LATCH BODY NWL MANDAL ÜST GÖVDE 1
12 BR-014816 NWL LATCH NWL MANDAL 2
13 BR-036454 NWL LINK NWL MANDAL DESTEĞİ 2
14 BR-42548 NWL SPRING PIN NWL MANDAL PİMİ 1
15 BR-26374 WL STEEL BALL WL ÇELİK MİSKET 1
16 BR-26380 WL LANDING INDICATOR BUSHING WL PLASTİK MİSKET YUVASI 1
17 BR-036026 NWL LANDING SHOULDER NWL BAŞLIK DURDURUCU BİLEZİK 1
18 BR-036008 NWL LOWER LATCH BODY NWL MANDAL ALT GÖVDE 1
19 BR-42885 NWL HEX NUT NWL BOY AYAR MİLİ SOMUNU 1
20 BR-42886 NWL SPINDLE NWL BOY AYAR MİLİ 1
21 BR-42888 NWL VALVE ADJUSTING WASHER NWL İÇ TÜP LASTİK AYARLAMA PULU 2
22 BR-44209 NWL SHUT OFF VALVE, HARD NWL LASTİK 2
23 BR-42312 NWL THRUST BEARING NWL ZARFLI RULMAN 1
24 BR-42889 NWL SPINDLE BUSHING NWL RULMAN BASKI SOMUNU 1
25 BR-81298 NWL HANGER BEARING NWL ALIN RULMANI 1
26 BR-42313 NWL COMPRESSION SPRING NWL BASKI YAYI 1
27 BR-22918 NWL NYLOC NUT NWL BASKI YAYI SOMUNU 1
28 BR-43604 NWLTK INNER TUBE CAP ASSEMBLY (28 A, B, C, D) NWLTK İÇ TÜP KEP BAŞLIĞI (28 A, B, C, D)
28A BR-71447 GREASE FITTING GRESÖRLÜK 1
28B BR-26374 STEEL BALL KEP MİSKETİ 1
28C BR-34602 NWLTK INNER TUBE CAP NWLTK İÇ TÜP KEPİ 1
28D BR-73382 NWL CHECK VALVE BODY NWL KEP MİSKET YUVASI 1
