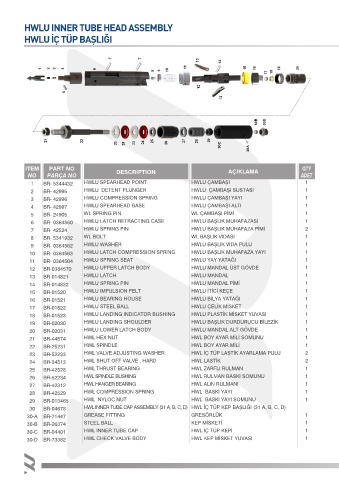

HWLU INNER TUBE HEAD ASSEMBLY
HWLU İÇ TÜP BAŞLIĞI

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR- 5344432 HWLU SPEARHEAD POINT HWLU ÇAMBAŞI 1
2 BR- 42995 HWLU DETENT PLUNGER HWLU ÇAMBAŞI SUSTASI 1
3 BR- 42996 HWLU COMPRESSION SPRING HWLU ÇAMBAŞI YAYI 1
4 BR- 42997 HWLU SPEARHEAD BASE HWLU ÇAMBAŞI ALTI 1
5 BR- 24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 1
6 BR- 0364560 HWLU LATCH RETRACTING CASE HWLU BAŞLIK MUHAFAZASI 1
7 BR- 42524 HWLU SPRING PIN HWLU BAŞLIK MUHAFAZA PİMİ 2
8 BR- 5341932 WL BOLT WL BAŞLIK VİDASI 1
9 BR- 0364562 HWLU WASHER HWLU BAŞLIK VİDA PULU 1
10 BR- 0364563 HWLU LATCH COMPRESSION SPRING HWLU BAŞLIK MUHAFAZA YAYI 1
11 BR- 0364564 HWLU SPRING SEAT HWLU YAY YATAĞI 1
12 BR-0384570 HWLU UPPER LATCH BODY HWLU MANDAL ÜST GÖVDE 1
13 BR-014821 HWLU LATCH HWLU MANDAL 1
14 BR-014822 HWLU SPRING PIN HWLU MANDAL PİMİ 1
15 BR-01520 HWLU IMPULSION FELT HWLU İTİCİ KEÇE 1
16 BR-01521 HWLU BEARING HOUSE HWLU BİLYA YATAĞI 1
17 BR-01522 HWLU STEEL BALL HWLU ÇELİK MİSKET 1
18 BR-01523 HWLU LANDING INDICATOR BUSHING HWLU PLASTİK MİSKET YUVASI 1
19 BR-02030 HWLU LANDING SHOULDER HWLU BAŞLIK DURDURUCU BİLEZİK 1
20 BR-02031 HWLU LOWER LATCH BODY HWLU MANDAL ALT GÖVDE 1
21 BR-44574 HWL HEX NUT HWL BOY AYAR MİLİ SOMUNU 1
22 BR-25231 HWL SPINDLE HWL BOY AYAR MİLİ 1
23 BR-52233 HWL VALVE ADJUSTING WASHER HWL İÇ TÜP LASTİK AYARLAMA PULU 2
24 BR-34513 HWL SHUT OFF VALVE , HARD HWL LASTİK 2
25 BR-42528 HWL THRUST BEARING HWL ZARFLI RULMAN 1
26 BR-52234 HWL SPINDLE BUSHING HWL RULMAN BASKI SOMUNU 1
27 BR-42312 HWL HANGER BEARING HWL ALIN RULMANI 1
28 BR-42529 HWL COMPRESSION SPRING HWL BASKI YAYI 1
29 BR-013465 HWL NYLOC NUT HWL BASKI YAYI SOMUNU 1
30 BR-04678 HWL INNER TUBE CAP ASSEMBLY (31 A, B, C, D) HWL İÇ TÜP KEP BAŞLIĞI (31 A, B, C, D)
30-A BR-71447 GREASE FITTING GRESÖRLÜK 1
30-B BR-26374 STEEL BALL KEP MİSKETİ 1
30-C BR-04401 HWL INNER TUBE CAP HWL İÇ TÜP KEPİ 1
30-D BR-73382 HWL CHECK VALVE BODY HWL KEP MİSKET YUVASI 1
