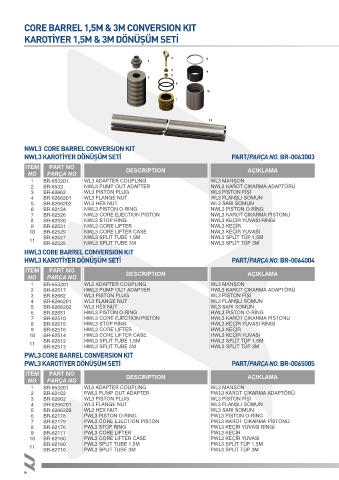

CORE BARREL 1,5M & 3M CONVERSION KIT
KAROTİYER 1,5M & 3M DÖNÜŞÜM SETİ

NWL3 CORE BARREL CONVERSION KIT
NWL3 KAROTİYER DÖNÜŞÜM SETİ PART/PARÇA NO. BR-0063003

ITEM PART NO DESCRIPTION AÇIKLAMA
NO PARÇA NO
1 BR-653201 WL3 ADAPTER COUPLING WL3 MANŞON
2 BR-6532 NWL3 PUMP OUT ADAPTER NWL3 KAROT ÇIKARMA ADAPTÖRÜ
3 BR-62662 WL3 PISTON PLUG WL3 PİSTON FİŞİ
4 BR-6266201 WL3 FLANGE NUT WL3 FLANŞLI SOMUN
5 BR-6266202 WL3 HEX NUT WL3 SARI SOMUN
6 BR-62134 NWL3 PISTON O-RING NWL3 PISTON O-RİNG
7 BR-62526 NWL3 CORE EJECTION PISTON NWL3 KAROT ÇIKARMA PİSTONU
8 BR-62530 NWL3 STOP RING NWL3 KEÇİR YUVASI RİNGİ
9 BR-62531 NWL3 CORE LIFTER NWL3 KEÇİR
10 BR-62529 NWL3 CORE LIFTER CASE NWL3 KEÇİR YUVASI
BR-62527 NWL3 SPLIT TUBE 1,5M NWL3 SPLİT TÜP 1,5M
11
BR-62528 NWL3 SPLIT TUBE 3M NWL3 SPLİT TÜP 3M
HWL3 CORE BARREL CONVERSION KIT
HWL3 KAROTİYER DÖNÜŞÜM SETİ PART/PARÇA NO. BR-0064004

ITEM PART NO DESCRIPTION AÇIKLAMA
NO PARÇA NO
1 BR-653201 WL3 ADAPTER COUPLING WL3 MANŞON
2 BR-62517 HWL3 PUMP OUT ADAPTER HWL3 KAROT ÇIKARMA ADAPTÖRÜ
3 BR-62662 WL3 PISTON PLUG WL3 PİSTON FİŞİ
4 BR-6266201 WL3 FLANGE NUT WL3 FLANŞLI SOMUN
5 BR-6266202 WL3 HEX NUT WL3 SARI SOMUN
6 BR-02651 HWL3 PISTON O-RING HWL3 PISTON O-RİNG
7 BR-62510 HWL3 CORE EJECTION PISTON HWL3 KAROT ÇIKARMA PİSTONU
8 BR-62515 HWL3 STOP RING HWL3 KEÇİR YUVASI RİNGİ
9 BR-62516 HWL3 CORE LIFTER HWL3 KEÇİR
10 BR-62514 HWL3 CORE LIFTER CASE HWL3 KEÇİR YUVASI
BR-62512 HWL3 SPLIT TUBE 1,5M HWL3 SPLİT TÜP 1,5M
11 BR-62513 HWL3 SPLIT TUBE 3M HWL3 SPLİT TÜP 3M
PWL3 CORE BARREL CONVERSION KIT
PWL3 KAROTİYER DÖNÜŞÜM SETİ PART/PARÇA NO. BR-0065005
ITEM PART NO DESCRIPTION AÇIKLAMA
NO PARÇA NO
1 BR-653201 WL3 ADAPTER COUPLING WL3 MANŞON
2 BR-62182 PWL3 PUMP OUT ADAPTER PWL3 KAROT ÇIKARMA ADAPTÖRÜ
3 BR-62662 WL3 PISTON PLUG WL3 PİSTON FİŞİ
4 BR-6266201 WL3 FLANGE NUT WL3 FLANŞLI SOMUN
5 BR-6266202 WL3 HEX NUT WL3 SARI SOMUN
6 BR-62178 PWL3 PISTON O-RING PWL3 PISTON O-RİNG
7 BR-62179 PWL3 CORE EJECTION PISTON PWL3 KAROT ÇIKARMA PİSTONU
8 BR-62176 PWL3 STOP RING PWL3 KEÇİR YUVASI RİNGİ
9 BR-62177 PWL3 CORE LIFTER PWL3 KEÇİR
10 BR-62160 PWL3 CORE LIFTER CASE PWL3 KEÇİR YUVASI
BR-62180 PWL3 SPLIT TUBE 1,5M PWL3 SPLİT TÜP 1,5M
11 BR-62710 PWL3 SPLIT TUBE 3M PWL3 SPLİT TÜP 3M
