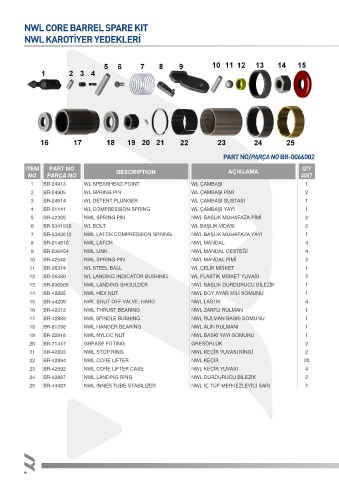

NWL CORE BARREL SPARE KIT
NWL KAROTİYER YEDEKLERİ

PART NO/PARÇA NO BR-0066002

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-24913 WL SPEARHEAD POINT WL ÇAMBAŞI 1
2 BR-24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 2
3 BR-24914 WL DETENT PLUNGER WL ÇAMBAŞI SUSTASI 1
4 BR-51141 WL COMPRESSION SPRING WL ÇAMBAŞI YAYI 1
5 BR-42305 NWL SPRING PIN NWL BAŞLIK MUHAFAZA PİMİ 2
6 BR-5341932 WL BOLT WL BAŞLIK VİDASI 2
7 BR-5343812 NWL LATCH COMPRESSION SPRING NWL BAŞLIK MUHAFAZA YAYI 1
8 BR-014816 NWL LATCH NWL MANDAL 4
9 BR-036454 NWL LINK NWL MANDAL DESTEĞİ 4
10 BR-42548 NWL SPRING PIN NWL MANDAL PİMİ 2
11 BR-26374 WL STEEL BALL WL ÇELİK MİSKET 1
12 BR-26380 WL LANDING INDICATOR BUSHING WL PLASTİK MİSKET YUVASI 2
13 BR-036009 NWL LANDING SHOULDER NWL BAŞLIK DURDURUCU BİLEZİK 1
14 BR-42885 NWL HEX NUT NWL BOY AYAR MİLİ SOMUNU 1
15 BR-44209 NWL SHUT OFF VALVE, HARD NWL LASTİK 4
16 BR-42312 NWL THRUST BEARING NWL ZARFLI RULMAN 1
17 BR-42889 NWL SPINDLE BUSHING NWL RULMAN BASKI SOMUNU 1
18 BR-81298 NWL HANGER BEARING NWL ALIN RULMANI 1
19 BR-22918 NWL NYLOC NUT NWL BASKI YAYI SOMUNU 1
20 BR-71447 GREASE FITTING GRESÖRLÜK 2
21 BR-42893 NWL STOP RING NWL KEÇİR YUVASI RİNGİ 2
22 BR-42894 NWL CORE LIFTER NWL KEÇİR 20
23 BR-42892 NWL CORE LIFTER CASE NWL KEÇİR YUVASI 4
24 BR-42897 NWL LANDING RING NWL DURDURUCU BİLEZİK 2
25 BR-44407 NWL INNER TUBE STABILIZER NWL İÇ TÜP MERKEZLEYİCİ SARI 2
