Page 41 - Barkom 2019 Katalog

WIRELINE CORING SYSTEM

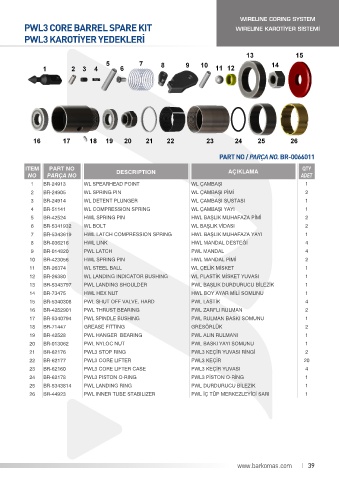

PWL3 CORE BARREL SPARE KIT WIRELINE KAROTİYER SİSTEMİ
PWL3 KAROTİYER YEDEKLERİ

PART NO / PARÇA NO. BR-0066011

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-24913 WL SPEARHEAD POINT WL ÇAMBAŞI 1
2 BR-24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 2
3 BR-24914 WL DETENT PLUNGER WL ÇAMBAŞI SUSTASI 1
4 BR-51141 WL COMPRESSION SPRING WL ÇAMBAŞI YAYI 1
5 BR-42524 HWL SPRING PIN HWL BAŞLIK MUHAFAZA PİMİ 2
6 BR-5341932 WL BOLT WL BAŞLIK VİDASI 2
7 BR-5343619 HWL LATCH COMPRESSION SPRING HWL BAŞLIK MUHAFAZA YAYI 1
8 BR-036216 HWL LINK HWL MANDAL DESTEĞİ 4
9 BR-014820 PWL LATCH PWL MANDAL 4
10 BR-423056 HWL SPRING PIN HWL MANDAL PİMİ 2
11 BR-26374 WL STEEL BALL WL ÇELİK MİSKET 1
12 BR-26380 WL LANDING INDICATOR BUSHING WL PLASTİK MİSKET YUVASI 1
13 BR-5343797 PWL LANDING SHOULDER PWL BAŞLIK DURDURUCU BİLEZİK 1
14 BR-73475 HWL HEX NUT HWL BOY AYAR MİLİ SOMUNU 1
15 BR-5340308 PWL SHUT OFF VALVE, HARD PWL LASTİK 4
16 BR-4252901 PWL THRUST BEARING PWL ZARFLI RULMAN 2
17 BR-5340794 PWL SPINDLE BUSHING PWL RULMAN BASKI SOMUNU 1
18 BR-71447 GREASE FITTING GRESÖRLÜK 2
19 BR-42528 PWL HANGER BEARING PWL ALIN RULMANI 1
20 BR-013062 PWL NYLOC NUT PWL BASKI YAYI SOMUNU 1
21 BR-62176 PWL3 STOP RING PWL3 KEÇİR YUVASI RİNGİ 2
22 BR-62177 PWL3 CORE LIFTER PWL3 KEÇİR 20
23 BR-62160 PWL3 CORE LIFTER CASE PWL3 KEÇİR YUVASI 4
24 BR-62178 PWL3 PISTON O-RING PWL3 PİSTON O-RİNG 1
25 BR-5343814 PWL LANDING RING PWL DURDURUCU BİLEZİK 1
26 BR-44923 PWL INNER TUBE STABILIZER PWL İÇ TÜP MERKEZLEYİCİ SARI 1

www.barkomas.com 39
