WIRELINE CORING SYSTEM

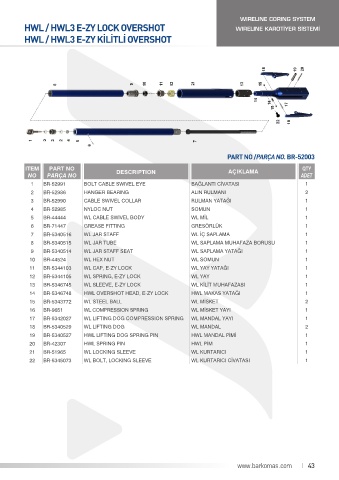

HWL / HWL3 E-ZY LOCK OVERSHOT WIRELINE KAROTİYER SİSTEMİ
HWL / HWL3 E-ZY KİLİTLİ OVERSHOT

PART NO /PARÇA NO. BR-52003

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-52991 BOLT CABLE SWIVEL EYE BAĞLANTI CİVATASI 1
2 BR-52986 HANGER BEARING ALIN RULMANI 2
3 BR-52990 CABLE SWIVEL COLLAR RULMAN YATAĞI 1
4 BR-52985 NYLOC NUT SOMUN 1
5 BR-44444 WL CABLE SWIVEL BODY WL MİL 1
6 BR-71447 GREASE FITTING GRESÖRLÜK 1
7 BR-5340516 WL JAR STAFF WL İÇ SAPLAMA 1
8 BR-5340515 WL JAR TUBE WL SAPLAMA MUHAFAZA BORUSU 1
9 BR-5340514 WL JAR STAFF SEAT WL SAPLAMA YATAĞI 1
10 BR-44524 WL HEX NUT WL SOMUN 1
11 BR-5344103 WL CAP, E-ZY LOCK WL YAY YATAĞI 1
12 BR-5344105 WL SPRING, E-ZY LOCK WL YAY 1
13 BR-5346745 WL SLEEVE, E-ZY LOCK WL KİLİT MUHAFAZASI 1
14 BR-5346748 HWL OVERSHOT HEAD, E-ZY LOCK HWL MAKAS YATAĞI 1
15 BR-5343772 WL STEEL BALL WL MİSKET 2
16 BR-9651 WL COMPRESSION SPRING WL MİSKET YAYI 1
17 BR-5342027 WL LIFTING DOG COMPRESSION SPRING WL MANDAL YAYI 1
18 BR-5340529 WL LIFTING DOG WL MANDAL 2
19 BR-5340527 HWL LIFTING DOG SPRING PIN HWL MANDAL PİMİ 1
20 BR-42307 HWL SPRING PIN HWL PİM 1
21 BR-51965 WL LOCKING SLEEVE WL KURTARICI 1
22 BR-5345073 WL BOLT, LOCKING SLEEVE WL KURTARICI CİVATASI 1
