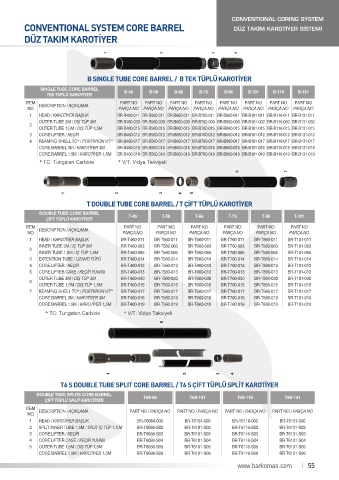

Page 57 - Barkom 2019 Katalog
P. 57
CONVENTIONAL CORING SYSTEM
CONVENTIONAL SYSTEM CORE BARREL DÜZ TAKIM KAROTİYER SİSTEMİ
DÜZ TAKIM KAROTİYER
B SINGLE TUBE CORE BARREL / B TEK TÜPLÜ KAROTİYER
SINGLE TUBE CORE BARREL
TEK TÜPLÜ KAROTİYER B-46 B-56 B-66 B-76 B-86 B-101 B-116 B-131
ITEM DESCRIPTION / AÇIKLAMA PART NO PART NO PART NO PART NO PART NO PART NO PART NO PART NO
NO PARÇA NO PARÇA NO PARÇA NO PARÇA NO PARÇA NO PARÇA NO PARÇA NO PARÇA NO
1 HEAD / KAROTİYER BAŞLIK BR-B460-011 BR-B560-011 BR-B660-011 BR-B760-011 BR-B860-011 BR-B101-011 BR-B116-011 BR-B131-011
OUTER TUBE 3M / DIŞ TÜP 3M BR-B460-030 BR-B560-030 BR-B660-030 BR-B760-030 BR-B860-030 BR-B101-030 BR-B116-030 BR-B131-030
2
OUTER TUBE 1,5M / DIŞ TÜP 1,5M BR-B460-015 BR-B560-015 BR-B660-015 BR-B760-015 BR-B860-015 BR-B101-015 BR-B116-015 BR-B131-015
3 CORE LIFTER / KEÇİR BR-B460-012 BR-B560-012 BR-B660-012 BR-B760-012 BR-B860-012 BR-B101-012 BR-B116-012 BR-B131-012
4 REAMING SHELL TC* / PORTKRON V/T* BR-B460-017 BR-B560-017 BR-B660-017 BR-B760-017 BR-B860-017 BR-B101-017 BR-B116-017 BR-B131-017
CORE BARREL 3M / KAROTİYER 3M BR-B460-018 BR-B560-018 BR-B660-018 BR-B760-018 BR-B860-018 BR-B101-018 BR-B116-018 BR-B131-018
CORE BARREL 1,5M / KAROTİYER 1,5M BR-B460-019 BR-B560-019 BR-B660-019 BR-B760-019 BR-B860-019 BR-B101-019 BR-B116-019 BR-B131-019
* TC: Tungsten Carbide * V/T: Vidye Takviyeli
T DOUBLE TUBE CORE BARREL / T ÇİFT TÜPLÜ KAROTİYER
DOUBLE TUBE CORE BARREL T-46 T-56 T-66 T-76 T-86 T-101
ÇİFT TÜPLÜ KAROTİYER
ITEM DESCRIPTION / AÇIKLAMA PART NO PART NO PART NO PART NO PART NO PART NO
NO PARÇA NO PARÇA NO PARÇA NO PARÇA NO PARÇA NO PARÇA NO
1 HEAD / KAROTİYER BAŞLIK BR-T460-011 BR-T560-011 BR-T660-011 BR-T760-011 BR-T860-011 BR-T101-011
INNER TUBE 3M / İÇ TÜP 3M BR-T460-063 BR-T560-063 BR-T660-063 BR-T760-063 BR-T860-063 BR-T101-063
2
INNER TUBE 1,5M / İÇ TÜP 1,5M BR-T460-065 BR-T560-065 BR-T660-065 BR-T760-065 BR-T860-065 BR-T101-065
3 EXTENTION TUBE / UZANTI TÜPÜ BR-T460-014 BR-T560-014 BR-T660-014 BR-T760-014 BR-T860-014 BR-T101-014
4 CORE LIFTER / KEÇİR BR-T460-012 BR-T560-012 BR-T660-012 BR-T760-012 BR-T860-012 BR-T101-012
5 CORE LIFTER CASE / KEÇİR YUVASI BR-T460-013 BR-T560-013 BR-T660-013 BR-T760-013 BR-T860-013 BR-T101-013
OUTER TUBE 3M / DIŞ TÜP 3M BR-T460-030 BR-T560-030 BR-T660-030 BR-T760-030 BR-T860-030 BR-T101-030
6
OUTER TUBE 1,5M / DIŞ TÜP 1,5M BR-T460-015 BR-T560-015 BR-T660-015 BR-T760-015 BR-T860-015 BR-T101-015
7 REAMING SHELL TC* / PORTKRON V/T* BR-T460-017 BR-T560-017 BR-T660-017 BR-T760-017 BR-T860-017 BR-T101-017
CORE BARREL 3M / KAROTİYER 3M BR-T460-018 BR-T560-018 BR-T660-018 BR-T760-018 BR-T860-018 BR-T101-018
CORE BARREL 1,5M / KAROTİYER 1,5M BR-T460-019 BR-T560-019 BR-T660-019 BR-T760-019 BR-T860-019 BR-T101-019
* TC: Tungsten Carbide * V/T: Vidye Takviyeli
T6 S DOUBLE TUBE SPLIT CORE BARREL / T6 S ÇİFT TÜPLÜ SPLİT KAROTİYER
DOUBLE TUBE SPLITE CORE BARREL T6S-86 T6S-101 T6S-116 T6S-131
ÇİFT TÜPLÜ SPLIT KAROTİYER
ITEM DESCRIPTION / AÇIKLAMA PART NO / PARÇA NO PART NO / PARÇA NO PART NO / PARÇA NO PART NO / PARÇA NO
NO
1 HEAD / KAROTİYER BAŞLIK BR-T6086-000 BR-T6101-000 BR-T6116-000 BR-T6131-000
2 SPLIT INNER TUBE 1,5M / SPLİT İÇ TÜP 1,5 M BR-T6086-S02 BR-T6101-S02 BR-T6116-S02 BR-T6131-S02
3 CORE LIFTER / KEÇİR BR-T6086-S03 BR-T6101-S03 BR-T6116-S03 BR-T6131-S03
4 CORE LIFTER CASE / KEÇİR YUVASI BR-T6086-S04 BR-T6101-S04 BR-T6116-S04 BR-T6131-S04
5 OUTER TUBE 1,5M / DIŞ TÜP 1,5M BR-T6086-S05 BR-T6101-S05 BR-T6116-S05 BR-T6131-S05
CORE BARREL 1,5M / KAROTİYER 1,5M BR-T6086-S06 BR-T6101-S06 BR-T6116-S06 BR-T6131-S06
