DRILL RODS & CASINGS

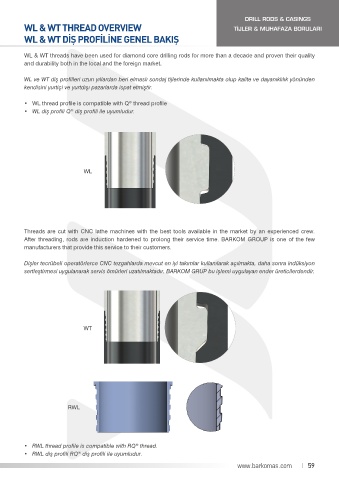

           WL & WT THREAD OVERVIEW                                                   TİJLER & MUHAFAZA BORULARI
           WL & WT DİŞ PROFİLİNE GENEL BAKIŞ


           WL & WT threads have been used for diamond core drilling rods for more than a decade and proven their quality
           and durability both in the local and the foreign market.


           WL ve WT diş profilleri uzun yıllardan beri elmaslı sondaj tijlerinde kullanılmakta olup kalite ve dayanıklılık yönünden
           kendisini yurtiçi ve yurtdışı pazarlarda ispat etmiştir.


           •  WL thread profile is compatible with Q  thread profile
                                                ®
           •  WL diş profili Q  diş profili ile uyumludur.
                            ®










                                WL


                                 4                             3                                2                             1







                  F
           Threads are cut with CNC lathe machines with the best tools available in the market by an experienced crew.                       F
           After threading, rods are induction hardened to prolong their service time. BARKOM GROUP is one of the few
           manufacturers that provide this service to their customers.


                                                                    A
           Dişler tecrübeli operatörlerce CNC tezgahlarda mevcut en iyi takımlar kullanılarak açılmakta, daha sonra indüksiyon
           sertleştirmesi uygulanarak servis ömürleri uzatılmaktadır. BARKOM GRUP bu işlemi uygulayan ender üreticilerdendir.




                                                                                                                           C

                  E                                                                                                                         E

                                WT
                                                                    A                             KESIT A-A














                  D        RWL                                                                                                              D






           •  RWL thread profile is compatible with RQ  thread.
                                                  ®
           •  RWL diş profili RQ  diş profili ile uyumludur.    DETAY C
                              ®
