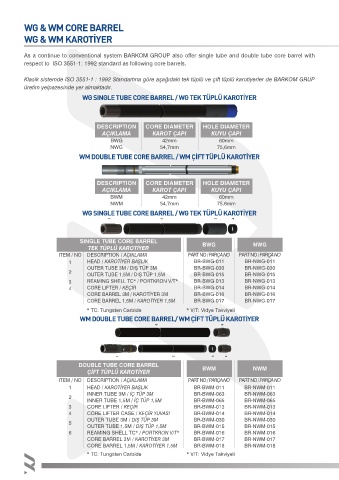

Page 58 - Barkom 2019 Katalog

WG & WM CORE BARREL
WG & WM KAROTİYER

As a continue to conventional system BARKOM GROUP also offer single tube and double tube core barrel with
respect to ISO 3551-1: 1992 standard as following core barrels.

Klasik sistemde ISO 3551-1 : 1992 Standartına göre aşağıdaki tek tüplü ve çift tüplü karotiyerler de BARKOM GRUP
üretim yelpazesinde yer almaktadır.

WG SINGLE TUBE CORE BARREL / WG TEK TÜPLÜ KAROTİYER

DESCRIPTION CORE DIAMETER HOLE DIAMETER
AÇIKLAMA KAROT ÇAPI KUYU ÇAPI
BWG 42mm 60mm
NWG 54,7mm 75,6mm
WM DOUBLE TUBE CORE BARREL / WM ÇİFT TÜPLÜ KAROTİYER

DESCRIPTION CORE DIAMETER HOLE DIAMETER
AÇIKLAMA KAROT ÇAPI KUYU ÇAPI
BWM 42mm 60mm
NWM 54,7mm 75,6mm
WG SINGLE TUBE CORE BARREL / WG TEK TÜPLÜ KAROTİYER

SINGLE TUBE CORE BARREL BWG NWG
TEK TÜPLÜ KAROTİYER
ITEM / NO DESCRIPTION / AÇIKLAMA PART NO / PARÇA NO PART NO / PARÇA NO
1 HEAD / KAROTİYER BAŞLIK BR-BWG-011 BR-NWG-011
OUTER TUBE 3M / DIŞ TÜP 3M BR-BWG-030 BR-NWG-030
2 OUTER TUBE 1,5M / DIŞ TÜP 1,5M BR-BWG-015 BR-NWG-015
3 REAMING SHELL TC* / PORTKRON V/T* BR-BWG-013 BR-NWG-013
4 CORE LIFTER / KEÇİR BR-BWG-014 BR-NWG-014
CORE BARREL 3M / KAROTİYER 3M BR-BWG-016 BR-NWG-016
CORE BARREL 1,5M / KAROTİYER 1,5M BR-BWG-017 BR-NWG-017
* TC: Tungsten Carbide * V/T: Vidye Takviyeli
WM DOUBLE TUBE CORE BARREL/ WM ÇİFT TÜPLÜ KAROTİYER

DOUBLE TUBE CORE BARREL BWM NWM
ÇİFT TÜPLÜ KAROTİYER
ITEM / NO DESCRIPTION / AÇIKLAMA PART NO / PARÇA NO PART NO / PARÇA NO
1 HEAD / KAROTİYER BAŞLIK BR-BWM-011 BR-NWM-011
INNER TUBE 3M / İÇ TÜP 3M BR-BWM-063 BR-NWM-063
2
INNER TUBE 1,5M / İÇ TÜP 1,5M BR-BWM-065 BR-NWM-065
3 CORE LIFTER / KEÇİR BR-BWM-013 BR-NWM-013
4 CORE LIFTER CASE / KEÇİR YUVASI BR-BWM-014 BR-NWM-014
OUTER TUBE 3M / DIŞ TÜP 3M BR-BWM-030 BR-NWM-030
5
OUTER TUBE 1,5M / DIŞ TÜP 1,5M BR-BWM-015 BR-NWM-015
6 REAMING SHELL TC* / PORTKRON V/T* BR-BWM-016 BR-NWM-016
CORE BARREL 3M / KAROTİYER 3M BR-BWM-017 BR-NWM-017
CORE BARREL 1,5M / KAROTİYER 1,5M BR-BWM-018 BR-NWM-018
* TC: Tungsten Carbide * V/T: Vidye Takviyeli
